Tools

Work it out before you print.

Interactive calculator

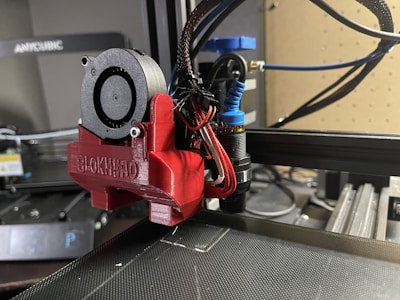

Nozzle, speed & melt-flow demand.

Move the nozzle slider from 0.2 to 2.0 mm. Line width and layer height follow it; speed and the tested material / hotend flow limit determine whether the melt path can keep up.

4.88mm³/s required147.4mm/s flow-limited ceiling41%of entered melt-flow capacity2.03mm/s filament feed

Within the entered melt-flow budget. Motion limits, cooling, material behavior and print detail can require a lower real speed.

The math and what it can predict

Flow Q = bead cross-sectional area A × print speed v. With line width w and layer height h, the rounded-rectangle model uses A = h(w − h) + πh²/4. The rectangle estimate uses A = wh. Speed ceiling = tested maximum flow / A. Filament feed = Q / (πd²/4), where d is filament diameter. Calculations use full precision and round only for display.

These equations are exact for the chosen geometric model, not a measurement of the real bead. Slicers differ in bead modeling, overlap and flow compensation. The limit is your tested sustained flow for the actual material, temperature and hotend; 12 mm³/s is an example input, not a recommendation. There is no universal nozzle-to-temperature formula. Follow the spool temperature range and calibrate at the intended conditions. A 2.0 mm nozzle requires specialist compatible hardware.
